J.I. Case 480E Engine
|
|
| Engine Detail | |
| J.I. Case 4-390 | |
| diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement | 239 ci 3.9 L |
| Bore/Stroke | 4.02x4.72 inches 102 x 120 mm |
| Power (net) | 63 hp 47.0 kW |
| Power (gross) | 69 hp 51.5 kW |
| Air cleaner | dry |
| Compression | 17:1 |
| Rated RPM | 2200 |
| Torque | 186 lb-ft 252.2 Nm |
| Torque RPM | 1200 |
| Starter volts | 12 |

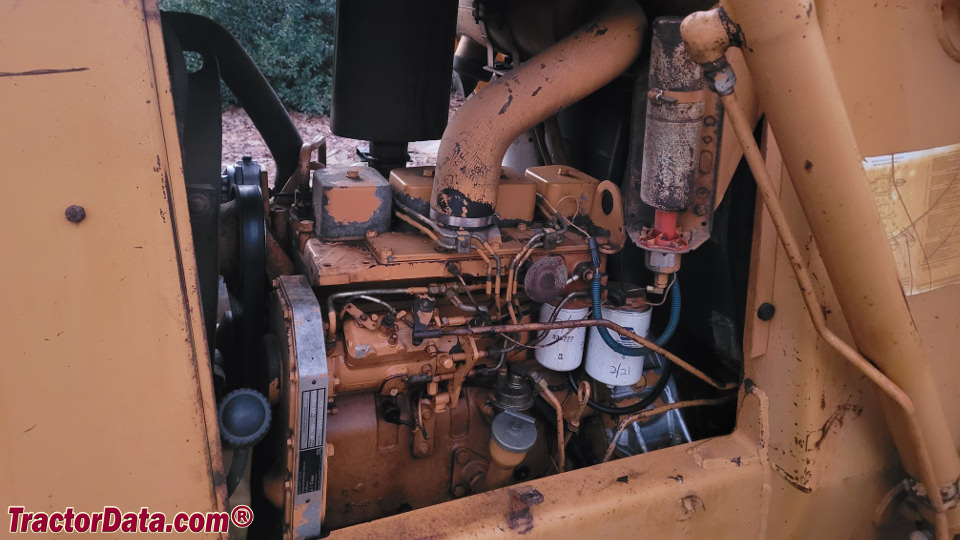

| J.I. Case 480E Engine | |
 | |
| Image courtesy of Jason Graybill |
