Ford 455
|
|
| Production | |
| Manufacturer | Ford |
| Backhoe loader tractor | |
| Ford 455 Engine | |
| Ford 3.3L 3-cyl diesel | |
 Engine details ... |
| Ford 455 Transmission | |
| 4-speed torque converter | |
 Transmission details ... |
| Ford 455 Power | |
| Engine (gross) | 58 hp 43.3 kW |
| Engine (net) | 55 hp 41.0 kW |
| PTO (claimed) | 45 hp 33.6 kW |
| Mechanical | |
| Two- or four-wheel drive | |
| Final drives | inboard planetary |
| Differential lock | mechanical rear |
| Power steering | |
| Wet disc brakes | |
| Four-post FOPS. Cab optional with heater. | |

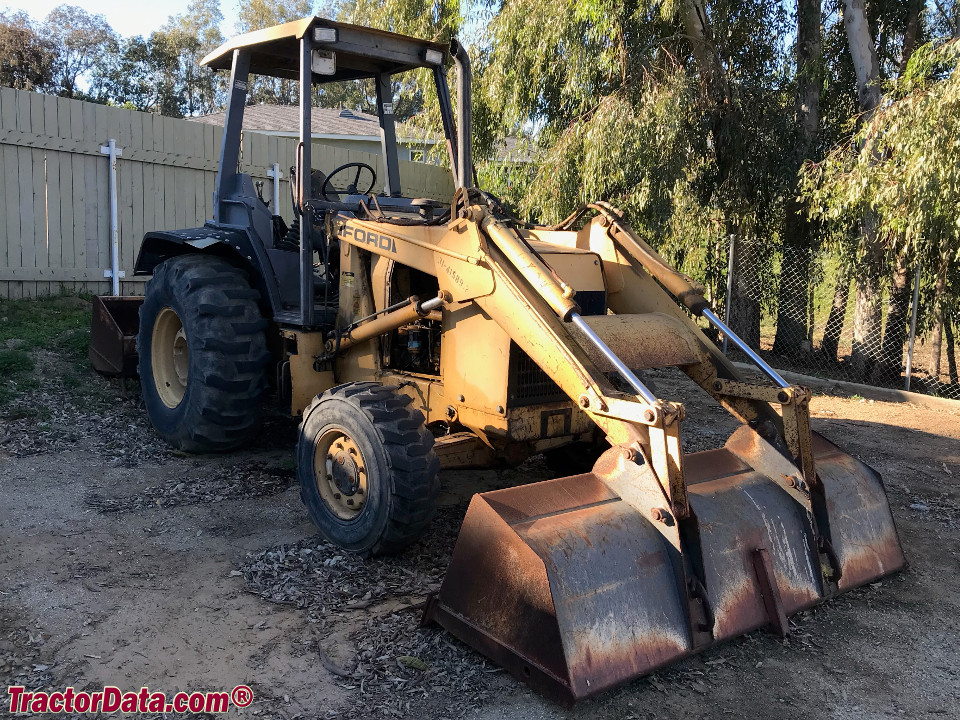

| Photos | |
 | |
 Ford 455 photos... | |
| Capacity | |
| Fuel | 24 gal 90.8 L |
| Hydraulic system | 13 gal (loader) 49.2 L |
| 21 gal (backhoe) 79.5 L | |
| Steering | 2 qts 1.9 L |
| Hydraulics | |
| Type | open center |
| Capacity | 13 gal (loader) 49.2 L |
| 21 gal (backhoe) 79.5 L | |
| Pump flow | 25 gpm 94.6 lpm |
| Steering flow | 5.9 gpm 22.3 lpm |
| Steering cap. | 2 qts 1.9 L |
| Dimensions & Tires | |
| Wheelbase | 80 inches 203 cm |
| Weight | 14180 to 134440 pounds |
| Front tire | 11L-16 |
| Rear tire | 16.9-24 |
 Full dimensions and tires ... | |
| Backhoe & Loader | |
| Dig depth | 168 inches 426 cm |
| Dump angle | 55 inches 139 cm |
 Loader/Backhoe details ... | |
| Electrical | |
| Charging system | alternator |
| Charging amps | 46 |
| Battery CCA | 750 |
| Battery volts | 12 |
| Battery AH | 128 |
| References | |
 | |
| 455 Specifications published in 1987, by Ford |
