Allis Chalmers 615
|
|
| Production | |
| Manufacturer | Allis Chalmers |
| Backhoe loader tractor | |
| Built in Topeka, Kansas, USA | |
| Allis Chalmers 615 Engines | |
| Allis-Chalmers 2.6L 4-cyl gasoline | |
| Allis-Chalmers 2.9L 4-cyl diesel | |
| Allis-Chalmers 3.3L 4-cyl diesel | |
| Fuel tank | 16 gal 60.6 L |
 Engine details ... | |
| Allis Chalmers 615 Transmissions | |
| 4-speed power shuttle | |
| 4-speed gear | |
 Transmission details ... |
| Allis Chalmers 615 Power | |
| Engine | 57 hp 42.5 kW |
| Mechanical | |
| Two-wheel drive | |
| Final drives | bull gear |
| Power steering | |
| Mechanical drum brakes | |
| Open operator station. | |
| Photos | |
| No photos of the Allis Chalmers 615 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. | |
| Hydraulics | |
| Type | open center |
| Pressure | 2250 psi 155.1 bar |
| Pump flow | 24 gpm 90.8 lpm |
| Steering flow | 4.75 gpm (gas) 18.0 lpm |
| 5.25 gpm (diesel) 19.9 lpm | |
| Power Take-off (PTO) | |
| Rear PTO Type | 540 |
| 1000 | |
| Dimensions & Tires | |
| Wheelbase | 87 inches 220 cm |
 Full dimensions and tires ... | |
| Backhoe & Loader | |
| Dig depth | 175 inches 444 cm |
 Loader/Backhoe details ... | |
| 615 Serial Numbers | |
| Location: | Serial number engraved into the left side of the tractor, on the flange where the clutch and engine meet. |
| Electrical | |
| Gas Ground | positive |
| Diesel Ground | negative |
| Charging system | generator |
| Battery volts | 12 |

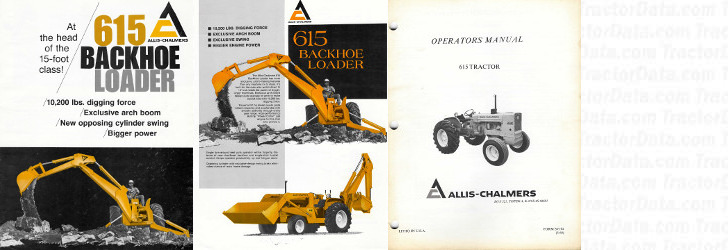

| References | |
 | |
| 615 Backhoe Loader published in 1969, by Allis Chalmers | |
| 615 Backhoe Loader (TE 308/695) published in 1969 | |
| 615 Tractor (SV104) published in 1969 |
