John Deere 315SG Transmission


John Deere 315SG tractor photo
2001 - 2007
Backhoe loader tractor
Series map:
310SG
315SG
91.0hp
92.5hp
Transmission options
4-speed synchronized
4-speed full power shift
Transmission
Typesynchronized
Gears4 forward and reverse
Oil capacity15 qts
14.2 L
Synchronized transmission with torque converter, push-button clutch, and left-hand shuttle.
Speeds
With 16.9-28 rear tires.
315SG  synchronized speeds
Transmission
Typefull power shift
Gears4 forward and 3 reverse
Oil capacity15 qts
14.2 L
Power shift transmission with torque converter. Left-hand shuttle lever with rotating collar for gear selection.
Speeds
With 16.9-28 rear tires.

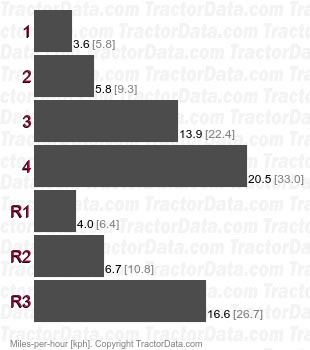

315SG  full power shift speeds
