Ford YT-14 9809209
|
|
| Production | |
| Distributor | Ford |
| Manufacturer | Lawn-Boy |
| Lawn tractor | |
| Ford YT-14 Engine | |
| 14HP Kohler 398cc 1-cyl gasoline | |
| Fuel tank | 4 gal 15.1 L |
 Engine details ... | |
| Ford YT-14 Transmission | |
| 5-speed gear | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Mechanical disc brakes | |
| Open operator station. |
| Photos | |
 | |
 Ford YT-14 photos... | |
| Power Take-off (PTO) | |
| Mid PTO | independent |
| Clutch | electric |
| Mid PTO Type | pulley |
| Dimensions & Tires | |
| Wheelbase | 49 inches 124 cm |
| Weight | 784 lbs 355 kg |
| Front tire | 15x6.00-6 |
| Rear tire | 22x9.00-12 |
 Full dimensions and tires ... | |
| Ford YT-14 attachments | |
| 42" mid-mount mower deck | |
 Attachment details ... |

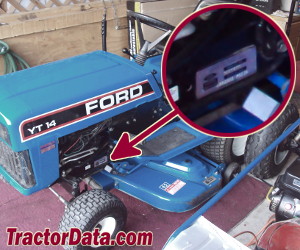

| YT-14 Serial Number Location | |
 | |
| Serial number plate on the left side of the tractor frame, just ahead of the foot rest. |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |
| References | |
 | |
| The Leisure Pleasers published in 1991, by Ford | |
| Riding mowers, Yard, Lawn and Lawn and Garden Tractors published in 1994, by Ford |
