J.I. Case 646
| | 1972 - 1980 |
| 600 Series | | Industrial tractor |
|
Series map:
644
646
14.0hp
16.5hp
| Production |
| Manufacturer | J.I. Case
|
| Industrial tractor |
| J.I. Case 646 Power |
| Engine | 16.5 hp
12.3 kW
|
| Mechanical |
| Two-wheel drive |
| Manual steering |
| Mechanical band brakes |
| Open operator station. |
| Capacity |
| Fuel | 5 gal
18.9 L
|
| Hydraulic system | 3 gal
11.4 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 3 gal
11.4 L
|
| Pressure | 2300 psi
158.6 bar
|
| Pump flow | 9 gpm
34.1 lpm
|

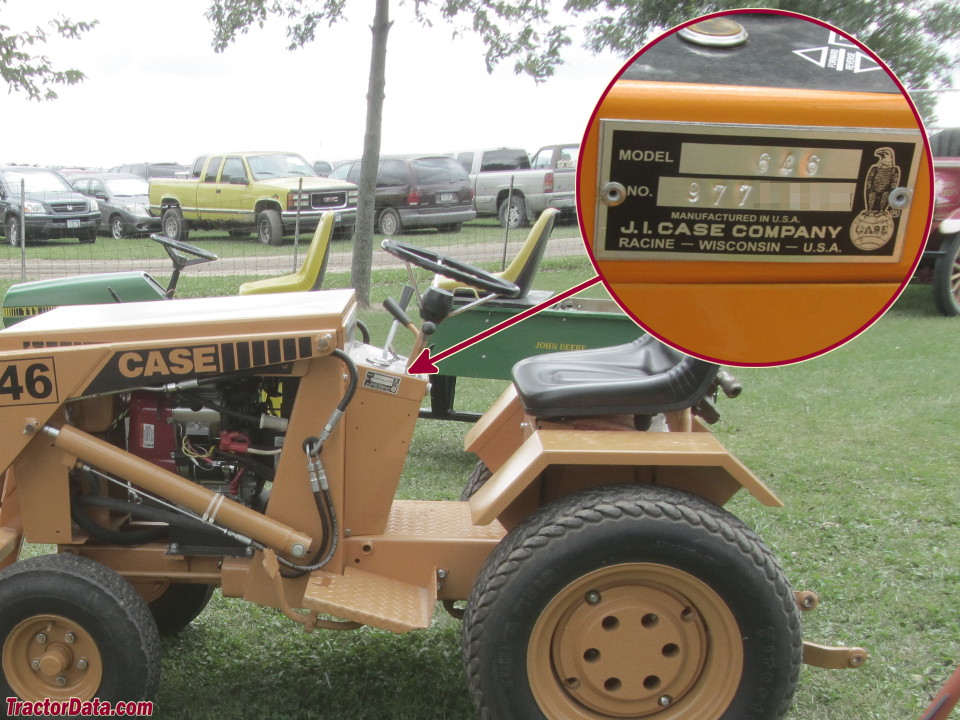

| 646 Serial Number Location |
 |
| Serial number plate on left side of tractor, just ahead of steering column. |
| Electrical |
| Ground | negative
|
| Charging system | flywheel alternator
|
| Charging amps | 20
|
| Charging volts | 12
|
| Battery volts | 12
|
| Battery AH | 32
|
| References |
 |
| Model 644-646 Compact wheel loader published in 1971, by J.I. Case |
| Model 644-646 Compact Loader/Tractor and Loader/Backhoe published in 1975, by J.I. Case |
| 644 and 646 Wheel Loader Operator's Manual (9-4324) published in 1978 |
| Garden tractor planning guide published in 1977, by J.I. Case |
