Tractors > Caterpillar > D5 SA Special Application

Caterpillar D5 SA Special Application



Caterpillar D5 SA Special Application tractor photo
1967 - 1976
Agricultural Crawler tractor
Series map:
D4D SA
D5 SA
D6C SA
74.0hp
-1hp
140.0hp
Production
ManufacturerCaterpillar
Agricultural Crawler tractor
Caterpillar D5 SA Engine
Caterpillar 8.6L 6-cyl diesel
Engine details ...
Caterpillar D5 SA Transmission
5-speed gear
Transmission details ...
Caterpillar D5 SA Power
Drawbar (claimed)90 hp
67.1 kW
Mechanical
Drivecrawler
Photos
No photos of the Caterpillar D5 SA are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Fuel78 gal
295.2 L
Hydraulic system11.5 gal
43.5 L
Hydraulics
Typeopen center
Capacity11.5 gal
43.5 L
Pressure1250 psi (early)
86.2 bar
 2000 psi (late)
137.9 bar
Pump flow32.7 gpm
123.8 lpm
 -unknown-
 23 gpm (late)
87.1 lpm
Dimensions & Tracks
Weight20400 lbs
9253 kg
18-inch tracks
Full dimensions and tracks ...
Electrical
Charging systemalternator
Charging amps50
Battery volts12
References

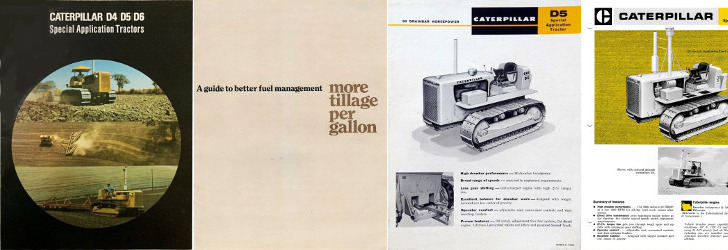

D5 SA Special Application references literature
D4 - D5 - D6 Special Application Tractors published in 1972, by Caterpillar
A guide to better fuel management published in 1973, by Caterpillar
D5 Special Application Tractor published in 1966, by Caterpillar
D5 Special Application published in 1974, by Caterpillar
