Caterpillar D4D SA Special Application
1966 - 1983 Agricultural Crawler tractor
Series map:
D4D SA
D5 SA
74.0hp
-1hp
Production Manufacturer Caterpillar
Agricultural Crawler tractor
Caterpillar D4D SA Power Engine (gross) 74 hp55.2 kW
Drawbar (claimed) 68 hp50.7 kW
Mechanical Drive crawler
Open operator station. Four-post ROPS and cab available.
Photos No photos of the Caterpillar D4D SA are currently available. To submit yours, email it to Peter@TractorData.com . Photos may only be used with the permission of the original photographer.
Hydraulics Type open center
Pressure 1250 psi86.2 bar
Pump flow 20 gpm75.7 lpm
Electrical Charging system alternator
Charging amps 19
Battery volts 12

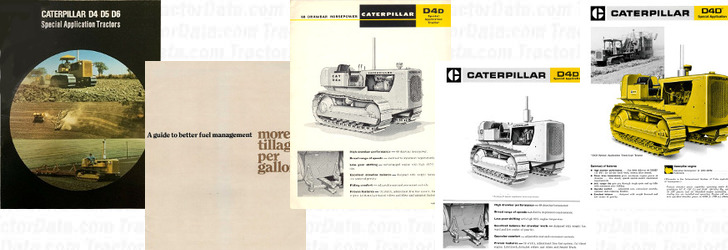

References D4 - D5 - D6 Special Application Tractors published in 1972, by Caterpillar A guide to better fuel management published in 1973, by Caterpillar D4D Special Application published in 1966, by Caterpillar D4D Special Application published in 1968, by Caterpillar D4D Special Application published in 1974, by Caterpillar
Page information Copyright 2024 TractorData.com® TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. Peter Easterlund - owner/authorEmail: Peter@TractorData.com Updated on April 8, 2022
©2000-2024 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...
Transmission details ...
Full dimensions and tracks ...
