Tractors > CaseIH > CS 120

CaseIH CS 120 Engine



CaseIH CS 120 tractor photo
1997 - 2003
CS Series
Row-Crop tractor
Series map:
CS 110
CS 120
CS 130
77.3kw
84.6kw
91.9kw
Engine Detail
Sisu 620.94
turbocharged diesel
6-cylinder
liquid-cooled
Displacement402.8 ci
6.6 L
Bore/Stroke4.25x4.72 inches
108 x 120 mm
Rated Power (net)113.4 hp
84.6 kW
Maximum Power (net)118.4 hp
88.3 kW
Rated RPM2300
Operating RPM1700-2300
Torque342.2 lb-ft
464.0 Nm
Torque RPM1500
Oil capacity21.1 qts
20.0 L
Oil change250 h

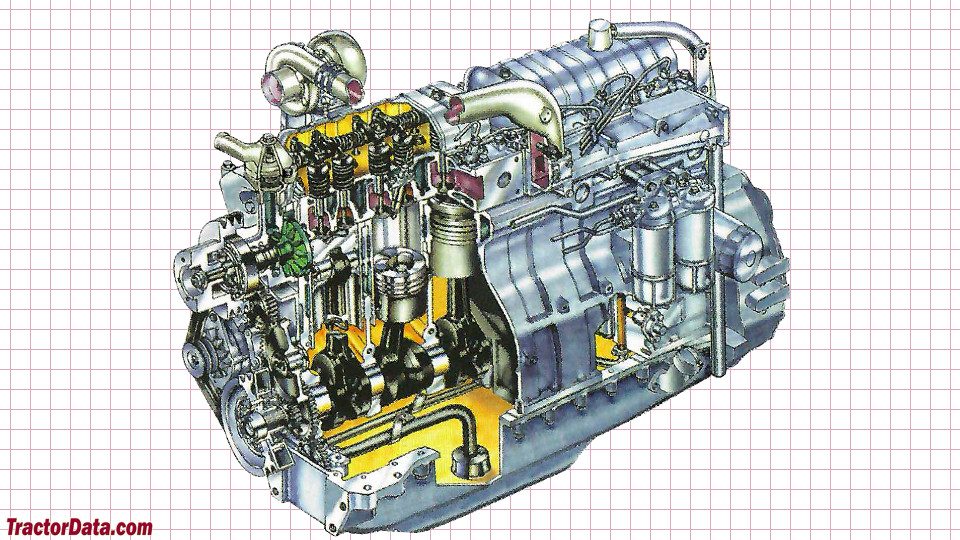

CaseIH CS 120 Engine
CaseIH CS 120 engine image
