Ford 946

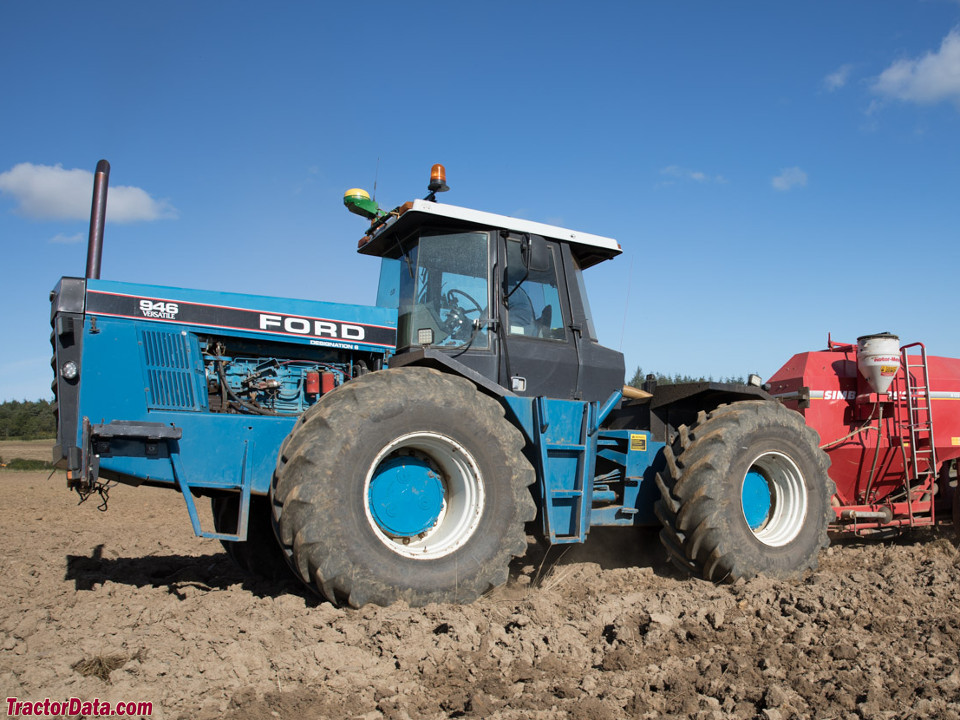

Ford 946 tractor photo
1989 - 1993
900 Series
Four-wheel Drive (4WD) tractor
Series map:
946
976
325.0hp
360.0hp

Note: the Ford model 946 is the same as the Versatile 946. The following data is from the 946 listing.
Production
ManufacturerFord
Four-wheel Drive (4WD) tractor
Built in Winnipeg, Manitoba, Canada
Original price was $106,000 in 1993
Ford 946 Engine
Cummins 14.0L 6-cyl diesel
Engine details ...
Ford 946 Transmissions
12-speed constant mesh
12-speed full power shift
Transmission details ...
Ford 946 Power
Engine325 hp
242.4 kW
PTO (claimed)286 hp
213.3 kW
Mechanical
Four-wheel drive
Final drivesoutboard planetary
Articulated power steering
Hydraulic disc brakes
Cab standard with air-conditioning.
Photos
Ford 946
Ford 946 photos...
Capacity
Fuel286 gal
1082.5 L
Hydraulic system15.3 gal
57.9 L
Hydraulics
Typeclosed center load sensing *Steering pump is open center.
Capacity15.3 gal
57.9 L
Pressure2400 psi
165.5 bar
Valves4 to 5
Pump flow24.5 gpm
92.7 lpm
Steering flow26.1 gpm
98.8 lpm
Steering press.2300 psi
158.6 bar
Tractor hitch
Rear TypeIVN/III
Controlposition control
Rear lift (at 24"/610mm)13036 lbs
5913 kg
Power Take-off (PTO)
Rear PTOindependent *PTO available only with power shift transmission.
Rear PTO Type1000 (1.75)
Dimensions & Tires
Wheelbase130 inches
330 cm
Weight32500 lbs
14742 kg
Front tire24.5-32
Rear tire24.5-32
Full dimensions and tires ...
946 Serial Numbers
Location:Serial number plate on the cab door post.
1989946 89 D430119
1990946 90 D450110
1991946 91 D475066
1992946 92 D485002
1993946 93 D930045
Final946 93 D931121

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Charging amps90
Batteries4
Battery CCA625
Battery volts12
References
946 references literature
Versatile 230 to 360 hp 4WD Tractors published in 1989, by Ford
Tractor Buyer's Guide published in 1989, by Ford
