New Holland T6.155
|
|
| Production | |
| Manufacturer | New Holland |
| Row-Crop tractor | |
| Original price was $84,514 in 2014 | |
| New Holland T6.155 Engine | |
| FPT 6.7L 6-cyl diesel | |
| Fuel tank | 60 gal 227.1 L |
| Exhaust fluid (DEF) | 9.7 gal 36.7 L |
 Engine details ... | |
| New Holland T6.155 Transmissions | |
| 24-speed two-speed power shift | |
| 16-speed eight-speed power shift | |
| 16-speed | |
 Transmission details ... |
| New Holland T6.155 Power | |
| Engine (gross) | 116 hp 86.5 kW |
| Engine (max) | 154 hp 114.8 kW |
| PTO (claimed) | 95 hp 70.8 kW |
| Drawbar (tested) | 87.3 hp 65.1 kW |
| PTO (tested) | 113.0 hp 84.3 kW |
 Performance test details ... | |
| Mechanical | |
| Four-wheel drive | |
| Steering | hydrostatic power |
| Hydraulic wet disc brakes | |
| Horizon cab standard with air-conditioning. Optional deluxe high-profile roof. Optional cab suspension. | |

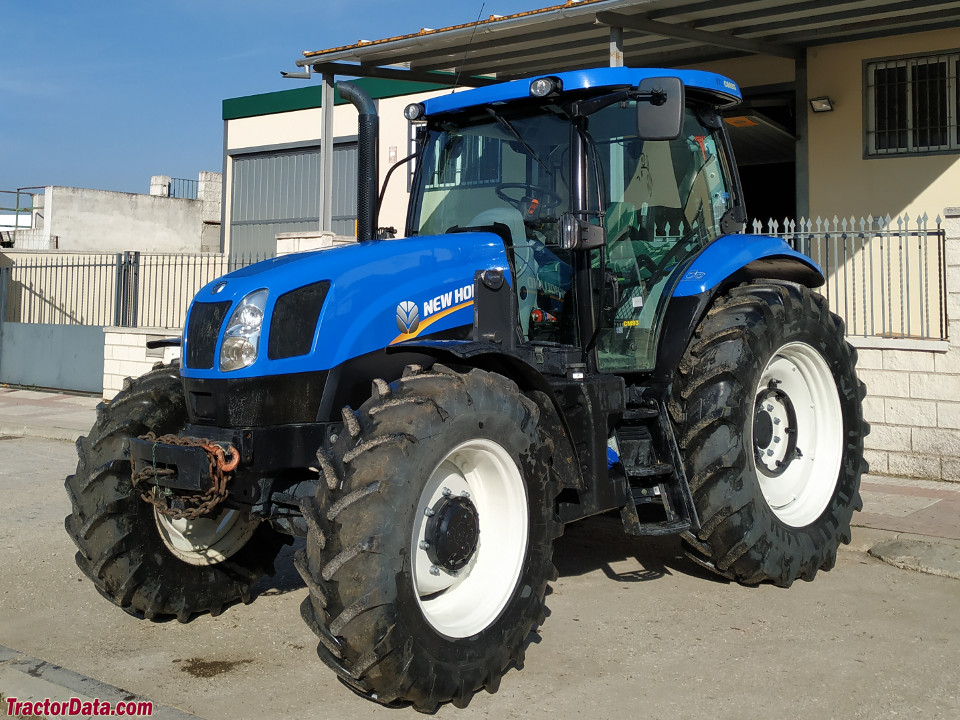

| Photos | |
 | |
 New Holland T6.155 photos... | |
| Hydraulics | |
| Type | open center |
| closed center load sensing (optional) | |
| Rear valves | 2 to 4 |
| Mid valves | 2 or 3 |
| Pump flow | 18.5 gpm (open) 70.0 lpm |
| 26.5 gpm (CCLS) 100.3 lpm | |
| Total flow | 29 gpm (open) 109.8 lpm |
| 38.9 gpm (CCLS) 147.2 lpm | |
| 33 gpm (CVT) 124.9 lpm | |
| Steering flow | 12.4 gpm 46.9 lpm |
| Tractor hitch | |
| Rear Type | II |
| Control | electronic draft control |
| Rear lift (at 24"/610mm) | 6720 lbs 3048 kg |
| 7980 lbs (optional) 3619 kg | |
| Front lift (at ends) | 6834 lbs 3099 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540/1000 |
| Engine RPM | 540@1969 |
| 1000@1924 | |
| Front PTO | optional |
| Front PTO Type | 1000 |
| Dimensions & Tires | |
| Weight | 11045 lbs 5010 kg |
 Full dimensions and tires ... | |
| New Holland T6.155 attachments | |
| front-end loader | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Battery volts | 12 |
