Tractors > Challenger > MT755E

Challenger MT755E



Challenger MT755E tractor photo
2014 - 2017
MT700E Series
Agricultural Crawler tractor
Series map:
MT755E
MT765E
350.0hp
375.0hp
Production
ManufacturerChallenger (a part of AGCO)
Agricultural Crawler tractor
Built in Jackson, Minnesota, USA
Challenger MT755E Engine
AGCO POWER 9.8L 7-cyl diesel
Fuel tank174 gal
658.6 L
 249 galOptOptional
942.5 L
Exhaust fluid (DEF)23 gal
87.1 L
Engine details ...
Challenger MT755E Transmission
16-speed full power shift
Transmission details ...
Challenger MT755E Power
Engine (gross)350 hp
261.0 kW
Drawbar (tested)252.35 hp
188.2 kW
PTO (tested)326.14 hp
243.2 kW
Performance test details ...
Mechanical
Drivecrawler
Steeringelectro-hydraulic differential
Hydraulic wet disc brakes
Cab standard.
Photos
No photos of the Challenger MT755E are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Typeclosed-center pressure-flow compensated (PFC)
Pressure2900 psi
200.0 bar
Valves4 to 6
Pump flow58.1 gpm
219.9 lpm
 85 gpmOptOptional
321.7 lpm
SCV flow26.4 gpm
99.9 lpm
 36 gpmOptOptional
136.3 lpm
Tractor hitch
Rear TypeIVN/III
Rear lift16000 lbs
7257 kg
DrawbarCat. 4 standard
 Cat. 3 optional
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type1000 (1.75)
Dimensions & Tracks
Weight30131 lbs
13667 kg
14-inch tracks
Full dimensions and tracks ...
Electrical
Groundnegative
Charging systemalternator
Charging amps300 (2x 150amp)
Batteries2
Battery volts12
References

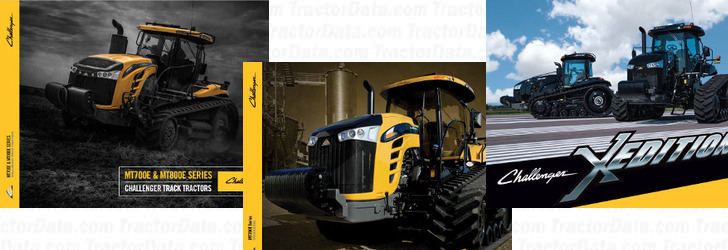

MT755E references literature
MT700E & MT800E Series Challenger Track Tractors published in 2015, by AGCO
MT700E Series published in 2013, by AGCO
Challenger X-Edition published in 2015, by AGCO
