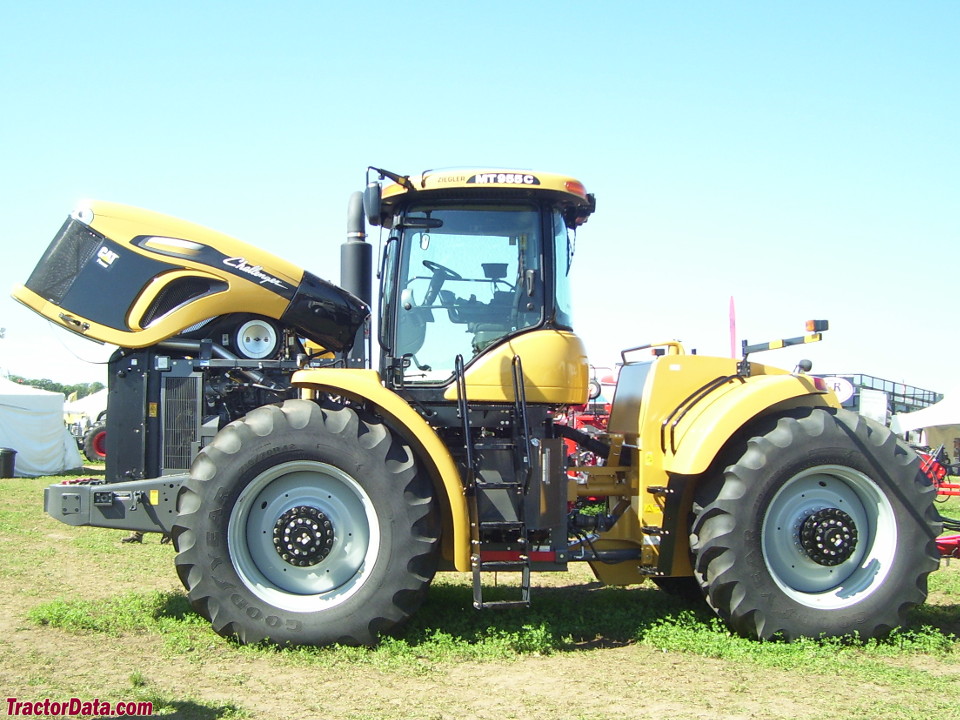

Challenger MT955C
| | 2009 - 2014 |
| MT900C Series | | Four-wheel Drive (4WD) tractor |
|
| Production |
| Manufacturer | Challenger (a part of AGCO)
|
| Four-wheel Drive (4WD) tractor |
| Built in Jackson, Minnesota, USA |
| Original price was $303,157 in 2009 |
| Challenger MT955C Power |
| Engine | 475 hp
354.2 kW
|
| PTO (claimed) | 385 hp
287.1 kW
|
| Drawbar (tested) | 399.53 hp
297.9 kW
|
| PTO (tested) | 451.08 hp
336.4 kW
|
 Performance test details ... |
| Mechanical |
| Four-wheel drive |
| Final drives | inboard planetary
|
| Differential lock | electro-hydraulic front and rear optional
|
| Articulated power steering |
| Cab standard with air-conditioning. |
| Hydraulics |
| Type | closed center pressure-flow compensated
|
| Pressure | 2900 psi
200.0 bar
|
| Valves | 4 to 6
|
| Pump flow | 36 gpm
136.3 lpm
|
| Total flow | 43.5 gpm
164.6 lpm
|
| | 59 gpmOptOptional
223.3 lpm
|
| Tractor hitch |
| Rear Type | III/IVN
|
| | IV
|
| Rear lift | 19,500 lbs
8845 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 1000 (1.75)
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 185
|
| Batteries | 4
|
| Battery CCA | 1000
|
| Battery volts | 12
|
| References |
 |
| Challenger MT800C/MT900C published in 2008, by AGCO |
