John Deere D
|
|
| Production | |
| Manufacturer | John Deere |
| Standard-tread tractor | |
| Built in Waterloo, Iowa, USA | |
| Original price was $2,124 in 1953 | |
| John Deere D Engine | |
| John Deere 8.2L 2-cyl all fuel | |
| Fuel tank | 23.5 gal 88.9 L |
| Aux. fuel | 1.5 gal 5.7 L |
 Engine details ... | |
| John Deere D Transmission | |
| 3-speed unsynchronized gear | |
 Transmission details ... |
| John Deere D Power | |
| Plows | 3 *14-inch |
| Drawbar (tested) | 38.02 hp 28.4 kW |
| Belt (tested) | 42.05 hp 31.4 kW |
 Performance test details ... | |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Brakes | integral mechanical |
| differential steering brakes OptOptional | |
| Open operator station with steel pan seat. | |
| Photos | |
 | |
 John Deere D photos... | |
| Power Take-off (PTO) | |
| Rear PTO | transmission OptOptional |
| Rear PTO Type | 525 |
| Dimensions & Tires | |
| Wheelbase | 70 inches 177 cm |
| Weight | 5662 to 6000 pounds |
| Front tire | 7.50-18 |
| Rear tire | 14-30 |
 Full dimensions and tires ... | |

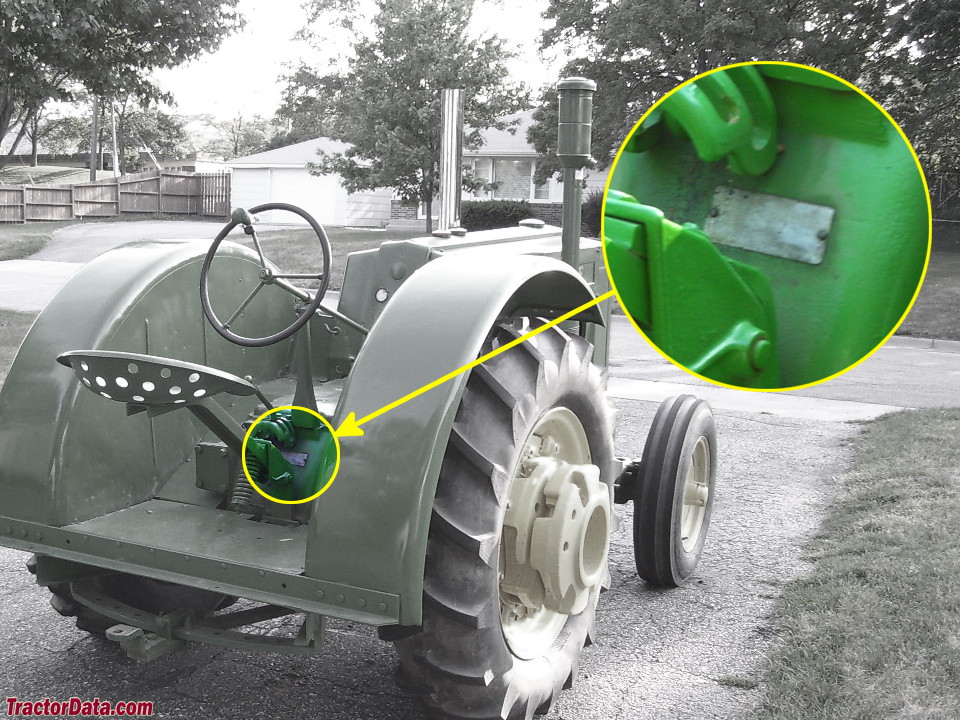

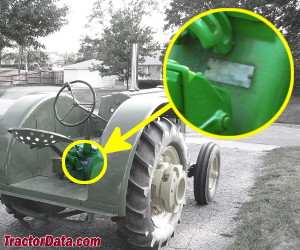

| D Serial Number Location | |
 | |
| Rear of transmission case, below shifter |
| D Serial Numbers | |
| 1939 | 143800 |
| 1940 | 146500 |
| 1941 | 148872 |
| 1942 | 151887 |
| 1943 | 154470 |
| 1944 | 155029 |
| 1945 | 158454 |
| 1946 | 161701 |
| 1947 | 164897 |
| 1948 | 171956 |
| 1949 | 180812 |
| 1950 | 187703 |
| 1951 | 189600 |
| 1952 | 190961 |
| 1953 | 191405 |
| Final | 191670 |
FAQ: How to read a serial number table. | |
| Belt Pulley | |
| Diameter | 13.25 inches 33 cm |
| Width | 8.5 inches 21 cm |
| RPM | 900 |
| Speed | 3122 ft/min 951.59 meters/min |
| Electrical | |
| Ground | positive |
| Charging system | generator |
| Batteries | 2 |
| Battery volts | 6 |
| Questions | |
| My father had two John Deere Model D's, my dad said the tractors ran on Distillate. I remember him mixing gas and diesel to fuel the tractors. Can you tell me the ratio of gas and diesel to mix the fuel to spark these ol' gems up again?
You can use gasoline. The D will run without problems on gasoline, it is what was used in the starting fuel tank. | |
| Email: Peter@TractorData.com |
| References | |
 | |
| The John Deere Styled "Letter" Series by J.R. Hobbs | |
| Tractors 1918-1976 published by John Deere* | |
| Model D Tractor published in 1940, by John Deere | |
| Operator's Manual John Deere D Tractor (OM2008) | |
| General Catalog published in 1940, by John Deere | |
| *Publication contains known errors. |
