Challenger MT575B

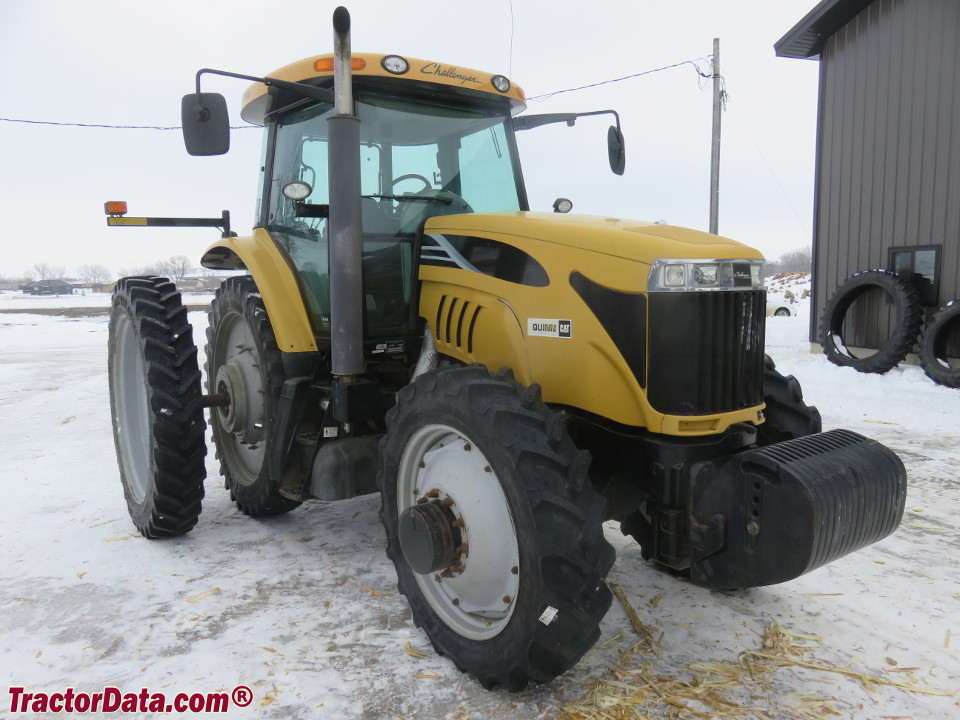

Challenger MT575B tractor photo
2007 - 2011
MT500B Series
Row-Crop tractor
Series map:
MT565B
MT575B
MT585B
170.0hp
185.0hp
200.0hp
Production
ManufacturerChallenger (a part of AGCO)
Row-Crop tractor
Built in Beauvais, France
Original price$118,810 (2009 AutoPower 2WD )
$132,069 (2009 AutoPower 4WD )
$141,792 (2009 CVT 4WD )
Variants
7495similar Massey Ferguson model
6495similar Massey Ferguson model
Challenger MT575B Engine
Caterpillar 6.6L 6-cyl diesel
Engine details ...
Challenger MT575B Transmissions
24-speed partial power shift
continuously variable transmission
Transmission details ...
Challenger MT575B Power
Engine (gross)185 hp
138.0 kW
PTO (claimed)160 hp
119.3 kW
Drawbar (tested)109.7 hp
81.8 kW
PTO (tested)193.8 hp
144.5 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Differential lockelectro-hydraulic front and rear
Power steering
Hydraulic wet disc brakes
Trailer brakeshydraulic OptOptional
Cab standard with heat and air-conditioning. Optional pneumatic cab suspension and automatic temperature control.
Capacity
Fuel98 gal
370.9 L
AP6 Hydraulic system18.5 gal
70.0 L
CVT Hydraulic system26.4 gal
99.9 L
Hydraulics
Typepressure flow compensated (PFC)
AP6 Capacity18.5 gal
70.0 L
CVT Capacity26.4 gal
99.9 L
Pressure2900 psi
200.0 bar
Valves4 to 5
Total flow29 gpm
109.8 lpm
 39 gpm*Optional with CVT transmission.
147.6 lpm
Tractor hitch
Rear Type2/3
Rear lift (at 24"/610mm)15,240 lbs
6912 kg
 14,283 lbs (CVT)
6478 kg
Front Hitchoptional
Front lift (at ends)8,800 lbs
3991 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchelectro-hydraulic
Rear PTO Type540/540E/1000 (1.375)
Front PTOindependent OptOptional
Front PTO Type1000 (1.375)
Dimensions & Tires
Wheelbase113.8 inches
289 cm
Weight15000 to 17595 pounds
Front tire11.00-16
2WD Rear tire18.4R42
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Charging amps150
Batteries2
Battery CCA420
Battery volts12
References
MT575B references literature
Challenger MT500B Series published in 2008, by AGCO
Challenger Specialty Wheel Tractors published in 2007
