Tractors > Hurlimann > H-6135 Elite

Hurlimann H-6135 Elite

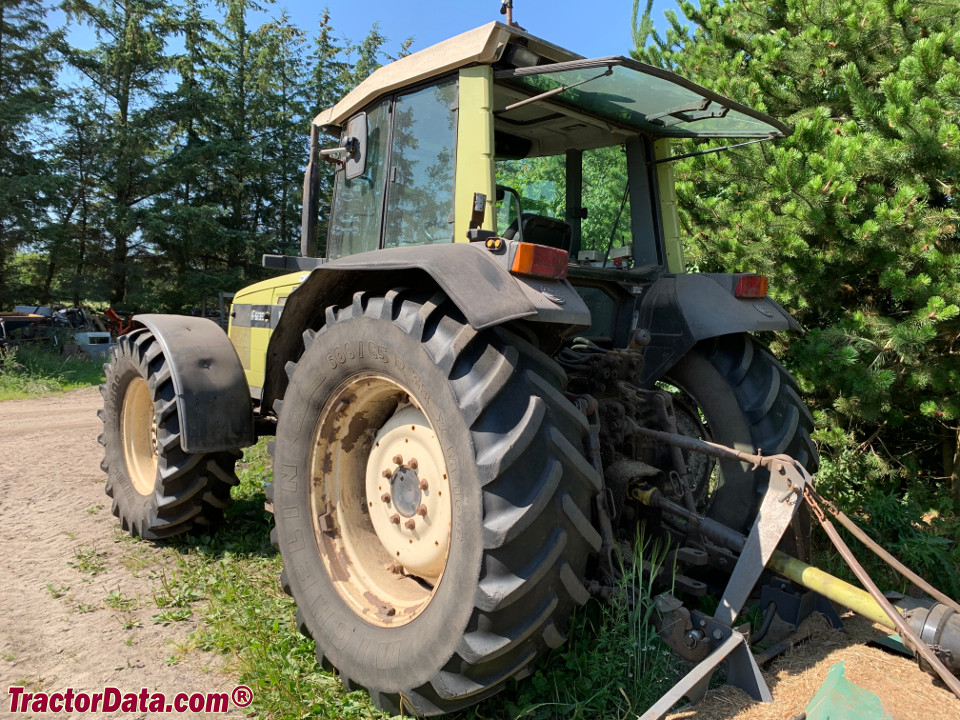

Hurlimann H-6135 Elite tractor photo
1991 - 1996
Elite Series
Series map:
H-6115 Elite
H-6135 Elite
85.8kw
98.4kw
Production
ManufacturerHurlimann
Hurlimann H-6135 Elite Engine
SAME 6.0L 6-cyl diesel
Fuel tank60.8 gal
230.1 L
Engine details ...
Hurlimann H-6135 Elite Transmissions
36-speed synchronized
48-speed creeper
Transmission details ...
Hurlimann H-6135 Elite Power
Engine132 hp
98.4 kW
Mechanical
Two- or four-wheel drive
Power steering
Cab standard with available air-conditioning.
Photos
Hurlimann H-6135 Elite
Hurlimann H-6135 Elite photos...
Hydraulics
Pump flow15.2 gpm
57.5 lpm
Tractor hitch
Rear lift13671 lbs
6201 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchelectro-hydraulic wet disc
Rear PTO Type540/1000/ground
Dimensions & Tires
Wheelbase108.3 inches
275 cm
Weight10759 lbs
4880 kg
Front tire16.9x30
Rear tire18.4x38
Full dimensions and tires ...
References
H-6135 Elite references literature
Elite published in 1994, by Hurlimann
