Fendt Favorit 514C
|
|
| Production | |
| Manufacturer | Fendt |
| Fendt Favorit 514C Engine | |
| MWM 6.2L 6-cyl diesel | |
| Fuel tank | 55.5 gal 210.1 L |
 Engine details ... | |
| Fendt Favorit 514C Transmission | |
| 44-speed four-speed power shift | |
 Transmission details ... |
| Fendt Favorit 514C Power | |
| Engine | 140 hp 104.4 kW |
| Mechanical | |
| Four-wheel drive | |
| Differential lock | electro-hydraulic front and rear |
| Power steering | |
| Hydraulic disc brakes | |
| Cab standard with heater. Air-conditioning optional. | |

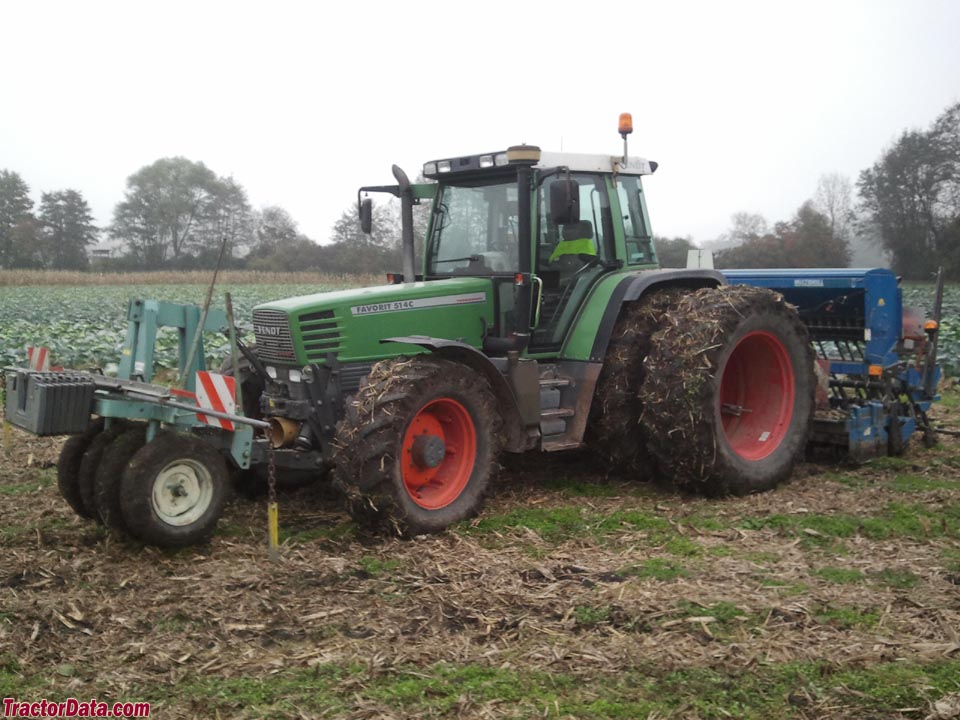

| Photos | |
 | |
 Fendt Favorit 514C photos... | |
| Hydraulics | |
| Pump flow | 26.9 gpm 101.8 lpm |
| Tractor hitch | |
| Rear Type | III/II |
| Control | lower-link draft sensing |
| Rear lift | 15181 lbs 6886 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | electro-hydraulic |
| Rear PTO Type | 540/750/1000/1400 |
| Front PTO | independent OptOptional |
| Front PTO Type | 1000 |
| Dimensions & Tires | |
| Wheelbase | 102.8 inches 261 cm |
| Weight | 12214 lbs 5540 kg |
| Front tire | 420/70R28 |
| Rear tire | 520/70R38 |
 Full dimensions and tires ... | |
| Fendt Favorit 514C attachments | |
| front-end loader | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Battery volts | 12 |
| Battery AH | 135 |
| References | |
 | |
| Favorit 509C 510C 511C 512C 514C 515C published in 1996, by Fendt |
