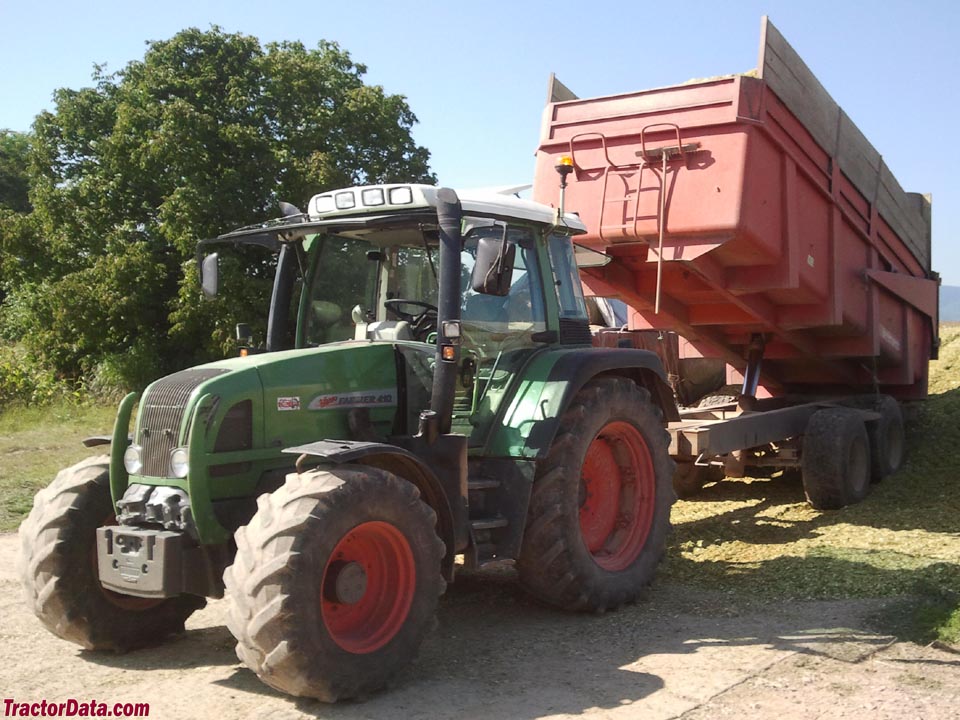

Fendt Farmer 410 Vario
|
|
| Production | |
| Manufacturer | Fendt |
| Row-Crop tractor | |
| Fendt Farmer 410 Vario Engine | |
| Deutz 3.8L 4-cyl diesel | |
| Fuel tank | 43.6 gal 165.0 L |
 Engine details ... | |
| Fendt Farmer 410 Vario Transmission | |
| continuously variable transmission | |
 Transmission details ... |
| Fendt Farmer 410 Vario Power | |
| Engine | 98.6 hp 73.5 kW |
| Drawbar (tested) | 70.26 hp 52.4 kW |
| PTO (tested) | 96.3 hp 71.8 kW |
 Performance test details ... | |
| Mechanical | |
| Four-wheel drive | |
| Power steering | |
| Hydraulic wet disc brakes | |
| Cab standard with heater. Air-conditioning optional. |
| Hydraulics | |
| Pump flow | 19.8 gpm 74.9 lpm |
| Tractor hitch | |
| Rear Type | III |
| Rear lift | 14482 lbs 6569 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540/750/1000 |
| Engine RPM | 540@1932 |
| 1000@1937 | |
| Front PTO | independent OptOptional |
| Front PTO Type | 540 |
| 1000 | |
| Dimensions & Tires | |
| Wheelbase | 95.2 inches 241 cm |
| Weight | 11486 lbs 5210 kg |
| Front tire | 420/70R24 |
| Rear tire | 480/70R38 |
 Full dimensions and tires ... | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 143 |
| Battery volts | 12 |
| Battery AH | 90 |
| References | |
 | |
| Farmer 400 Vario 409 410 411 412 published in 2001, by Fendt |
