CaseIH JX65 Maxxima

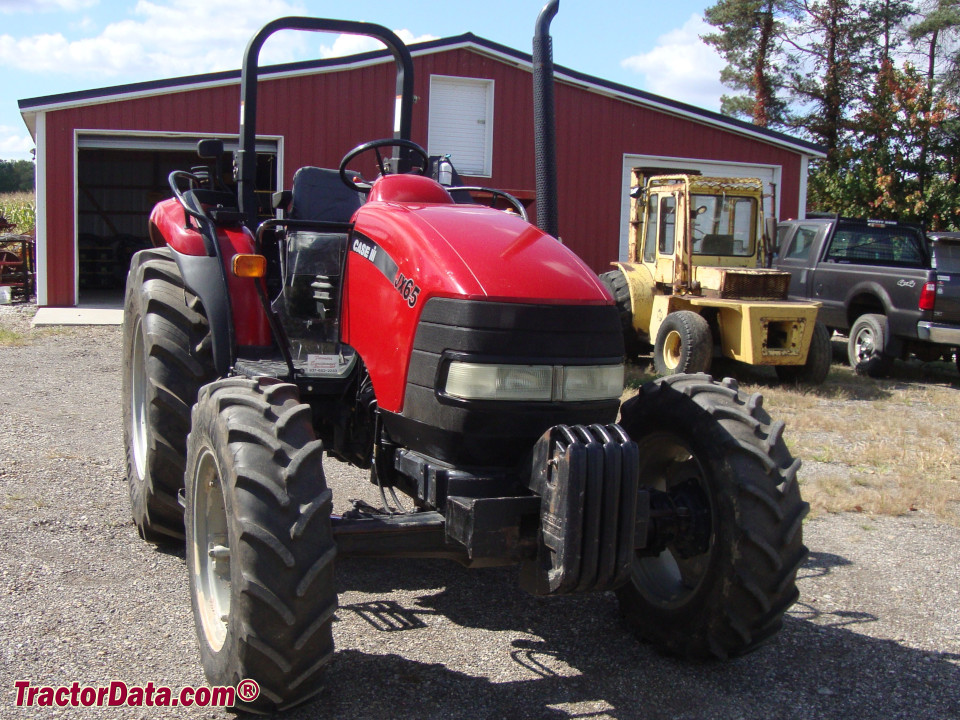

CaseIH JX65 Maxxima tractor photo
2002 - 2006
Model year
JX Series
Utility tractor
Turk Tractor built
Series map:
JX55
JX65
JX75
58.0hp
65.0hp
75.0hp
Production
DistributorCaseIH
ManufacturerTurk Tractor
Utility tractor
Built in Turkey
CaseIH JX65 Engine
Iveco 2.9L 3-cyl diesel
Fuel tank24.3 gal
92.0 L
Engine details ...
CaseIH JX65 Transmissions
12-speed mechanical shuttle
20-speed creeper
Transmission details ...
CaseIH JX65 Power
Engine (gross)65 hp
48.5 kW
PTO (claimed)50 hp
37.3 kW
Drawbar (tested)41.5 hp
30.9 kW
PTO (tested)50.7 hp
37.8 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Differential lockmechanical rear
Steeringhydrostatic power
Independent wet disc brakes
Two-post ROPS.
Photos
No photos of the CaseIH JX65 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Typeopen center
Valves3
Pump flow13.6 gpm
51.5 lpm
Tractor hitch
Rear TypeII/I
Rear lift6615 lbs*Advertised. 3620 lbs actual lift during testing
3000 kg
Power Take-off (PTO)
Rear PTOindependent
Rear RPM540/540E
 540/1000 OptOptional
Dimensions & Tires
Wheelbase83.4 inches
211 cm
Weight6010 to 6130 pounds
Full dimensions and tires ...
JX65 Serial Number Location
CaseIH JX65 serial number location
Serial number plate located below the steering column.
JX65 Serial Numbers
2003HFJ000001

FAQ: How to read a serial number table.
Electrical
Groundnegative
Battery volts12
