Note: the Ford-New Holland model 8630 is the same as the Ford 8630. The following data is from the 8630 listing. |
Nebraska Tractor Test 1536 | |||
|
Nebraska Tractor Test 1536 | |
Diesel 16-speed 4WD September 10 - 18, 1984 Link: Nebraska Tractor Test 1536 file | |

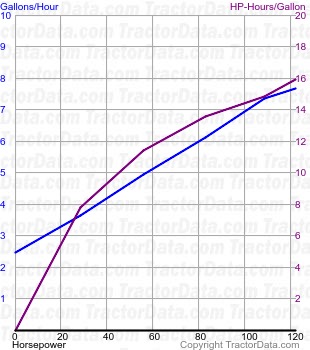

PTO performance | |
Power at rated engine speed: | 121.25 hp 90.4 kW |
Fuel use: | 7.6 gal/hour 28.8 l/hour |
Power at rated PTO speed: | 115.58 hp 86.2 kW |
Fuel use: | 1.0 gal/hour 3.8 l/hour |
Drawbar performance | |
Max power: | 105.76 hp 78.9 kW |
Fuel use: | 7.6 gal/hour 28.8 l/hour |
Gear 5L used for power test. | |
Max pull: | 15,939 lbs 7229 kg |
Gear 1H used for pull test. |
