Ford-New Holland 8360 Engine
|
|
| Engine Detail | |
| New Holland Genesis | |
| turbocharged diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 456 ci 7.5 L |
| Bore/Stroke: | 4.5x5.0 inches 114 x 127 mm |
| Compression: | 17.5:1 |
| Rated RPM: | 2200 |
| Idle RPM: | 700-2420 |
| Operating RPM: | 1500-2200 |
| Torque RPM: | 1400 |
| Firing order: | 1-5-3-6-2-4 |
| Starter volts: | 12 |
| Starter power: | 4.9 hp 3.7 kW |
| Coolant capacity: | 25.4 qts 24.0 L (ROPS) |
| 27.5 qts 26.0 L (cab) | |
| Intake valve clearance: | 0.016 inches 0.406 mm (cold) |
| Exhaust valve clearance: | 0.018 inches 0.457 mm (cold) |

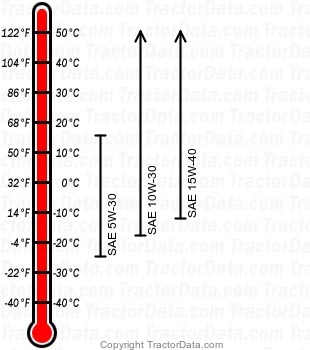

| Engine Oil | |
| |
| Oil capacity: | 20.8 qts 19.7 L |
