Tractors > Ford > 2000

Ford 2000



Ford 2000 tractor photo
1962 - 1975
Model year
Utility tractor
Series map:
2000
4000
48.4hp
62.5hp
Production
ManufacturerFord
Utility tractor
Built in Highland Park, Michigan, USA
The four-cylinder Ford 2000 tractor was very similar to the 601 Workmaster series of Ford tractors. It is entirely different than the later three-cylinder 2000 which replaced it.
Variants
2000 Offsetcultivating tractor
Ford 2000 Engines
Ford 2.2L 4-cyl gasoline
Ford 2.4L 4-cyl diesel
Engine details ...
Ford 2000 Transmissions
4-speed gear
5-speed gear
10-speed full power shift
12-speed gear
Transmission details ...
Ford 2000 Power
Engine (gross)48.4 hp
36.1 kW
Drawbar (claimed)28 hp
20.9 kW
PTO (claimed)31 hp
23.1 kW
Mechanical
Two-wheel drive
Utility Steeringmanual
Row-crop Steeringpower
Open operator station.
Photos
Ford 2000
Ford 2000 photos...
Capacity
Fuel13 gal
49.2 L
Hydraulic system2 gal
7.6 L
Hydraulics
Typeopen center
Capacity2 gal
7.6 L
Pressure2000 psi
137.9 bar
Valves2
Pump flow4.0 gpm
15.1 lpm
Tractor hitch
Rear TypeI
Rear lift (at ends)2360 lbs
1070 kg
Power Take-off (PTO)
Rear PTOtranmission
 live *Optional, available with the five-speed transmission.
 independent *Independent PTO available with the Select-O-Speed transmission.
Rear PTO Type540 (1.375)
Dimensions & Tires
Wheelbase74.5 inches
189 cm
Weight3020 to 3362 pounds
Front tire5.50-16
Rear tire12.4-28
Full dimensions and tires ...
Ford 2000 attachments
front-end loader
Attachment details ...

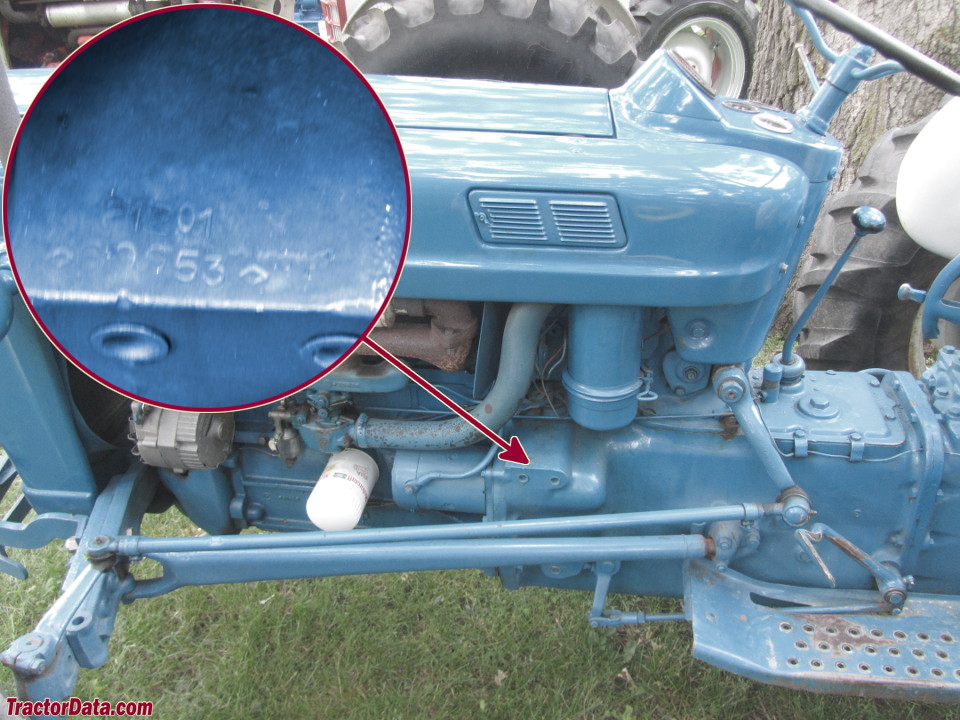

2000 Serial Number Location
Ford 2000 serial number location
Serial number stamped on the top of the starter mount casting, on the left side of the tractor.
2000 Serial Numbers
19621001
196311949
196438931

FAQ: How to read a serial number table.
Electrical
Groundpositive (6V)
 negative (12V)
Charging systemgenerator
Battery volts6 (gas/LP)
 12 (diesel)
References
2000 references literature
Industrial Tractors and Equipment published in 1964, by Ford
1200 Farm Loaders published in 1966, by Ford
Ford 2000 All Purpose Tractor published in 1963
4000 and 2000 published in 1962, by Ford
