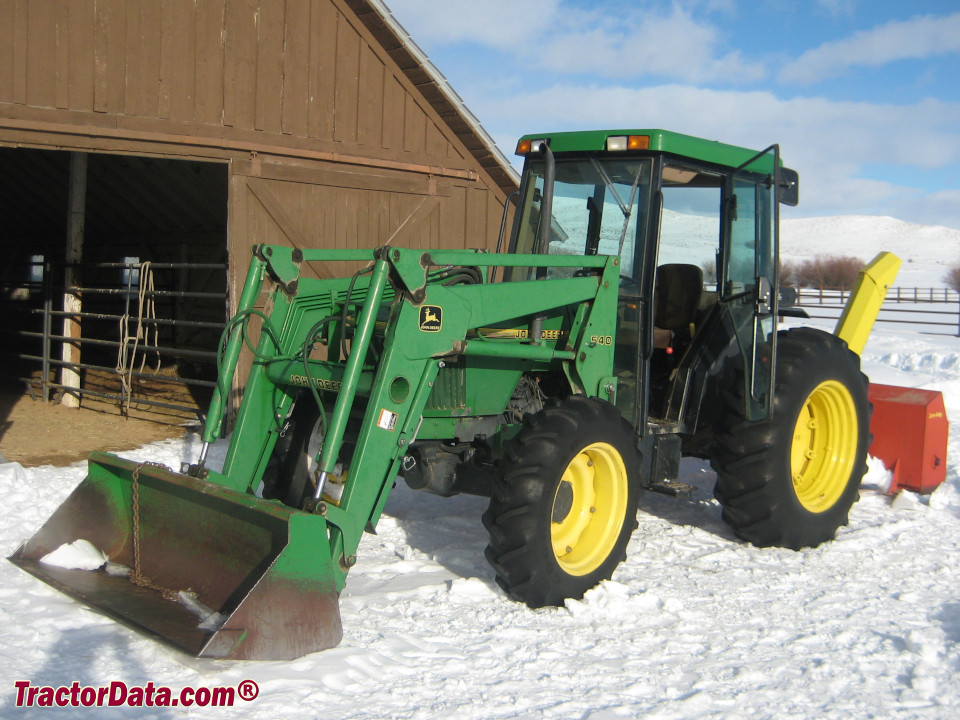

John Deere 5500
| | 1996 - 1997 |
| 5000 Utility Series | | Utility tractor |
|
Series map:
5400
5500
68.4hp
83.2hp
| Production |
| Manufacturer | John Deere
|
| Utility tractor |
| Built in Augusta, Georgia, USA |
| Original price | $28,000 (1997)
|
| Variants |
| 5500N | narrow, orchard tractor
|
| John Deere 5500 Power |
| Engine (gross) | 83.2 hp
62.0 kW
|
| PTO (claimed) | 73 hp
54.4 kW
|
| Drawbar (tested) | 63.11 hp
47.1 kW
|
| PTO (tested) | 74.04 hp
55.2 kW
|
 Performance test details ... |
| Mechanical |
| Drive | 4x2 2WD
|
| | 4x4 MFWD 4WD (optional)
|
| Differential lock | mechanical standard
|
| Steering | hydrostatic power
|
| Differential hydraulic wet disc brakes |
| Two-post folding ROPS. Cab optional with air-conditioning. |
| Hydraulics |
| Type | open center
|
| Pressure | 2750 psi
189.6 bar
|
| Valves | 1 to 3
|
| Pump flow | 16.4 gpm
62.1 lpm
|
| Total flow | 23.2 gpm
87.8 lpm
|
| Steering flow | 6.8 gpm
25.7 lpm
|
| Tractor hitch |
| Rear Type | II/I
|
| Control | position control with top-link draft sensing
|
| Rear lift (at 24"/610mm) | 3,374 lbs
1530 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Battery volts | 12
|
| References |
 |
| 40- to 73-HP 5000 Series Tractors published in 1995, by John Deere |
