John Deere 5010
| | 1963 - 1965 |
| New Generation Series | | Standard-tread tractor |
|
Series map:
5010
134.4hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | John Deere
|
| Standard-tread tractor |
| Built in Waterloo, Iowa, USA |
| Total built | 7,553
|
| Original price | $11,000 (1965)
|
| John Deere 5010 Power |
| Drawbar (claimed) | 109 hp
81.3 kW
|
| PTO (claimed) | 121 hp
90.2 kW
|
| Drawbar (tested) | 105.92 hp
79.0 kW
|
| PTO (tested) | 121.12 hp
90.3 kW
|
 Performance test details ... |
| Mechanical |
| Two-wheel drive |
| Power steering |
| Hydraulic wet disc brakes |
| Open operator station. |
| Capacity |
| Fuel | 48 gal
181.7 L
|
| Hydraulic system | 17 gal
64.3 L
|
| Hydraulics |
| Type | closed center
|
| Capacity | 17 gal
64.3 L
|
| Pressure | 2250 psi
155.1 bar
|
| Valves | 1 or 2
|
| Pump flow | 20 gpm
75.7 lpm
|
| Tractor hitch |
| Rear Type | 3/2
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 1000
|

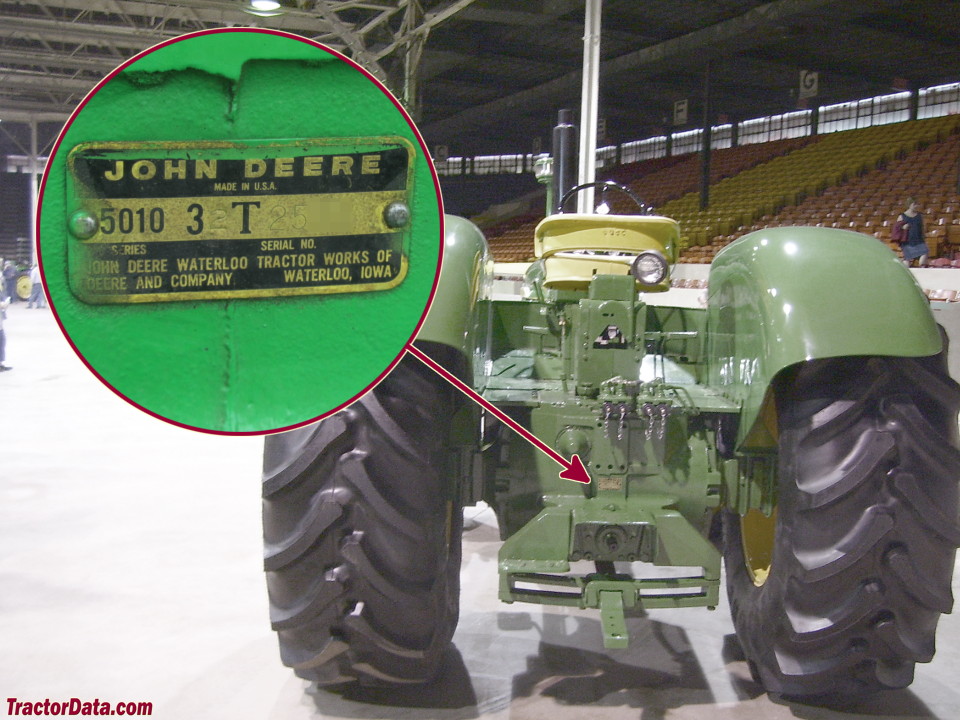

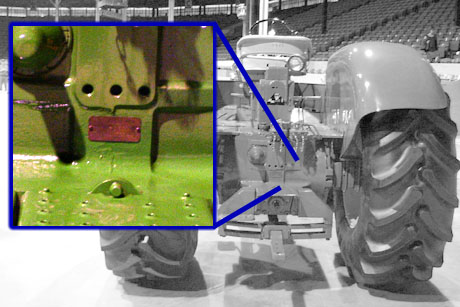

| 5010 Serial Number Location |
 |
| Rear of transmission case |
| Electrical |
| Charging system | Delco-Remy or Prestolite generator
|
| Batteries | 4
|
| Battery volts | 6
|
| Battery AH | 115
|
| References |
 |
| The John Deere 10 Series New Generation Tractors published in 2004, by Hain Publishing |
| Operator's Manual 5010 Standard Tractor (OM-R35980R) published in 1963 |
| Tractors 1918-1976 published by John Deere* |
| Modern Farming published in 1965, by John Deere |
| *Publication contains known errors. |
