John Deere MT



John Deere MT tractor photo
1949 - 1952
Two-Cylinder Letter Series
Row-Crop tractor
Production
ManufacturerJohn Deere
Row-Crop tractor
Built in Dubuque, Iowa, USA
Total built30,472
Original price$1,200
The MT is a tricycle version of the model M. It was the first Deere tractor to feature dual-control Touch-O-Matic hydraulics, allowing each side to be raised independently. The MT was available with a single front wheel, dual front wheels, Roll-O-Matic, or adjustable wide-front. The Roll-O-Matic was designed to reduce shock in the front end of the tractor.
Variants
Mutility
MTrow-crop
MCcrawler
MIindustrial
John Deere MT Engine
John Deere 1.6L 2-cyl gasoline
Fuel tank9 gal
34.1 L
Engine details ...
John Deere MT Transmission
4-speed unsynchronized gear
Transmission details ...
John Deere MT Power
Drawbar (claimed)14.08 hp
10.5 kW
Belt (claimed)18.33 hp
13.7 kW
Drawbar (tested)18.27 hp
13.6 kW
Belt (tested)20.78 hp
15.5 kW
Performance test details ...
Mechanical
Two-wheel drive
Steeringmanual
Differential mechanical drum brakes
Open operator station.

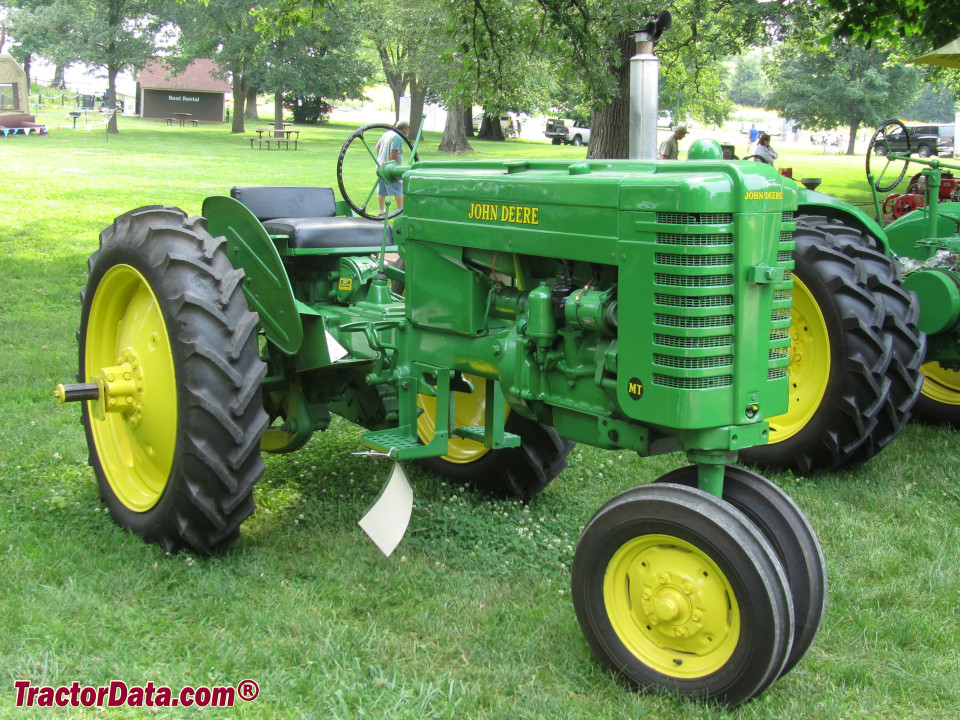

Photos
John Deere MT
John Deere MT photos...
Hydraulics
TypeTouch-O-Matic
Pressure700 psi
48.3 bar
Total flow4.25 gpm
16.1 lpm
Power Take-off (PTO)
Rear PTO Type550
Dimensions & Tires
Weight3,183 lbs
1443 kg
Front tire5.00x15
Rear tire9-34
Full dimensions and tires ...

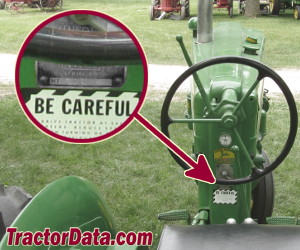

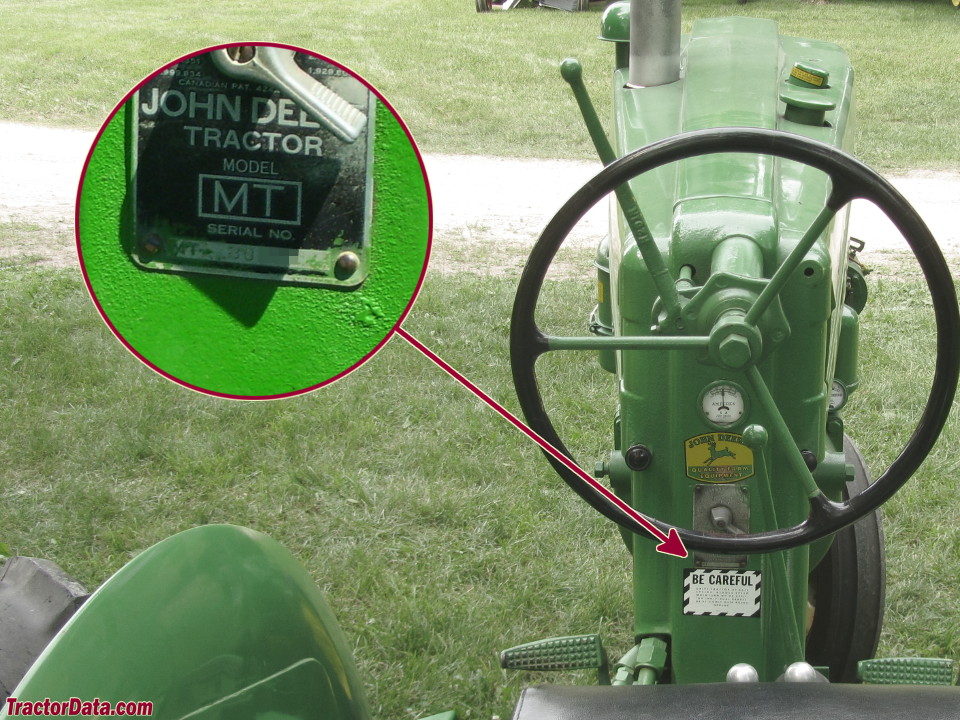

MT Serial Number Location
John Deere MT serial number location
On instrument panel under ignition switch
MT Serial Numbers
194910001
195014728
195125273
195232813

FAQ: How to read a serial number table.
Links
M 3-point Conversion: A conversion of the Touch-O-Matic to a three-point system
Belt Pulley
Diameter7.25 inches
18 cm
Width6.4 inches
16 cm
RPM1575
Speed2990 ft/min
911.35 meters/min
Electrical
Groundpositive
Battery volts6
References
MT references literature
Operator's Manual Hydraulic Loader No. 40 (OM-C26-753) published in 1953
Tractors 1918-1976 published by John Deere*
Model "MT" General-Purpose Tractor published in 1950, by John Deere
Operator's Manual Model "MT" Tractor (OM-TM2) published in 1951
*Publication contains known errors.
