Tractors > John Deere > GP

John Deere GP



John Deere GP tractor photo
1928 - 1935
Two-Cylinder Letter Series
Row-Crop tractor
Series map:
GP
22.2hp*
*Estimated engine power for comparison only.
Production
ManufacturerJohn Deere
Row-Crop tractor
Built in Waterloo, Iowa, USA
Total built30,535 (GP)
 5,103 (GPWT)
 717 (GPO)
Original price$1,200 (1935)
The GP was originally designated the Model C, the name was changed due to a similarity to the existing D, plus the "General Purpose" name was a marketing ploy to keep in line with International's new "Farmall". The GP was designed as a row crop tractor, with the fixed front axle straddling three rows. Several versions of the GP were made. The "wide tread" GPWT has a 76-inch rear axle and a tricycle front. The GP-P was a modified GPWT with a 68-inch rear axle, for use in potato fields. The GPO was lowered and had fenders for orchard work. Twenty-four GPO tractors were converted into crawlers by Lindeman.
Variants
GPWTwide-tread
GPOorchard
GP-Ppotato
John Deere GP Engines
John Deere 5.1L 2-cyl kerosene
John Deere 5.6L 2-cyl kerosene
Fuel tank16 gal
60.6 L
Aux. fuel2 gal
7.6 L
Engine details ...
John Deere GP Transmission
3-speed unsynchronized gear
Transmission details ...
John Deere GP Power
Drawbar (claimed)10 hp
7.5 kW
Belt (claimed)20 hp
14.9 kW
Plows2 (14-inch)
Drawbar (tested)18.86 hp
14.1 kW
Belt (tested)25.36 hp
18.9 kW
Performance test details ...
Mechanical
Two-wheel drive
Steeringmanual
Open operator station.

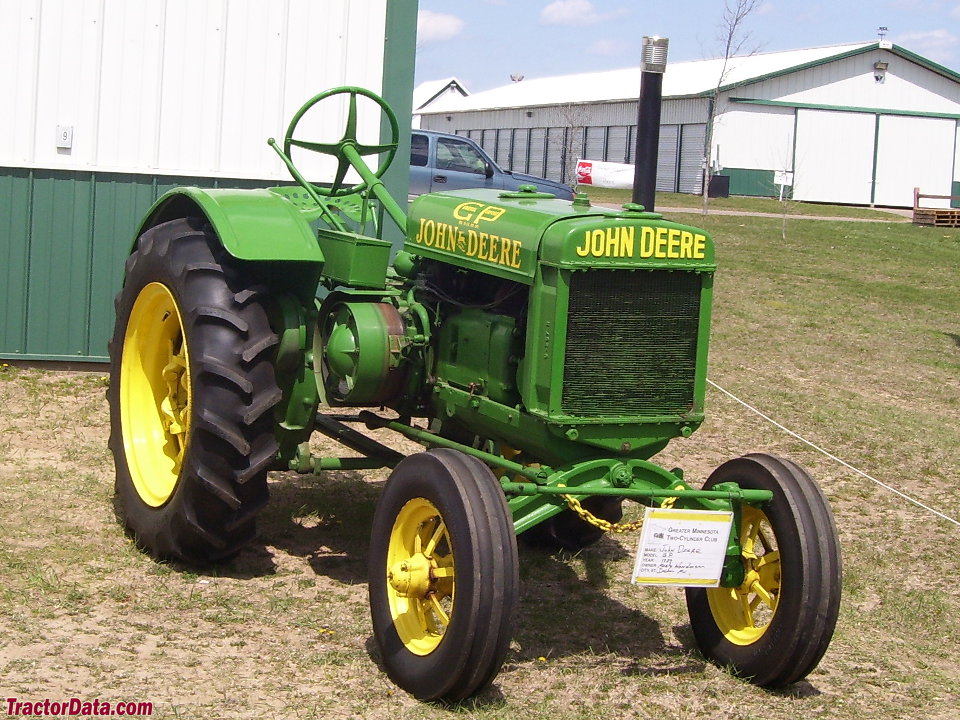

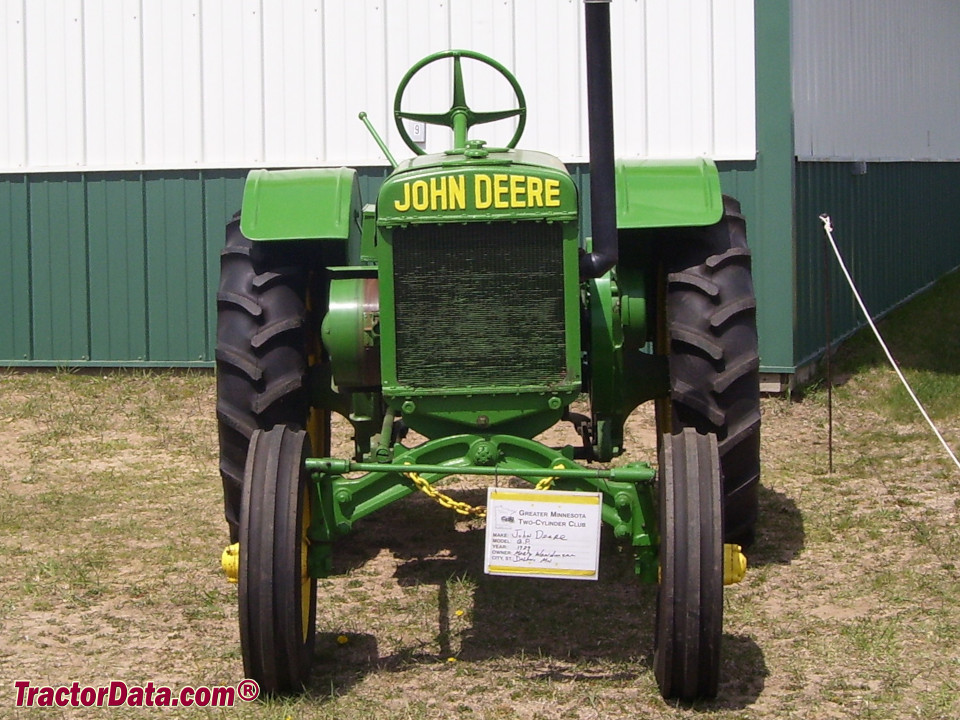

Photos
John Deere GP
John Deere GP photos...
Dimensions & Tires
Weight3,600 lbs
1632 kg
Front tire24x6
Rear tire42.75x10
Full dimensions and tires ...

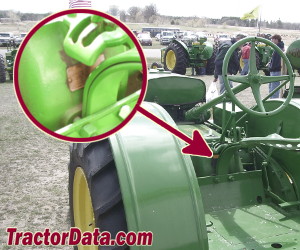

GP Serial Number Location
John Deere GP serial number location
Below gear shift lever
GP Serial Numbers
1928200211
1929201336
1930212038
1931223803
1932228666
1933229051
1934229216
1935230514
Final230745
193115000 (GP-O)
193215226 (GP-O)
193315387 (GP-O)
193415412 (GP-O)
193515589 (GP-O)
Final15732 (GP-O)
19305000-5202 (GP-P)

FAQ: How to read a serial number table.
References
GP references literature
Tractors 1918-1976 published by John Deere*
Quality Equipment for Your Farming Operations published in 1929, by John Deere
*Publication contains known errors.
